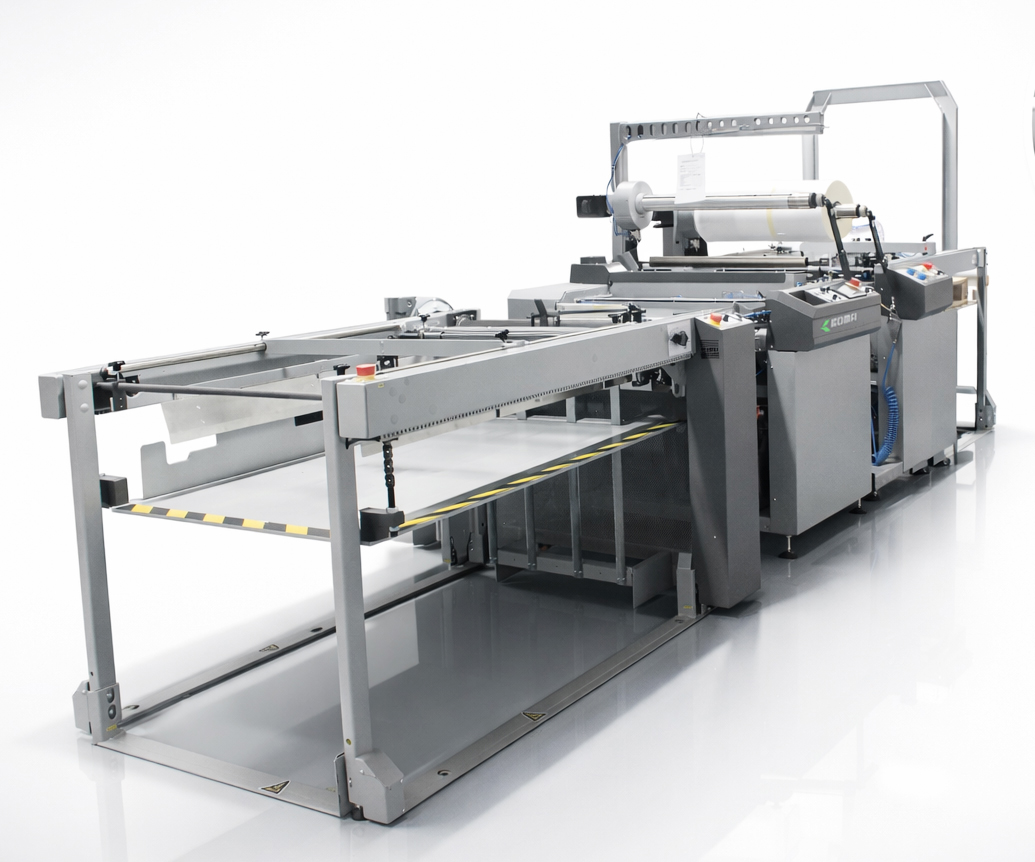

DELTA 80
Machine Characteristics
- The latest Komfi machine.
- New generation of B1+ lamination.
- Designed for industrial performance.
- Offers flexibility and a wide range of applications.
- Modular design for future upgrades.
Basic configuration
Feeder
- Double action feeding head.
- Compressor for feeder.
- Precise overlap and miss sheet control.
- Additional separation blowers for difficult substrates.
Laminating Unit
- Pneumatic pressure system.
- Airshaft for quick film change.
- Fine adjustable roller gap system enabling lamination of thick and die-cut sheets.
- Precise four zone direct heating system.
- Polyurethan coated pressure roll.
Separator & Delivery
- Built-in perforator.
- Pneumatic driven separation roller.
- Automatic skew wheel.
- Adjustable speed of snapping roll.
- Jogging table B1 with auto-stop.
SW functions included
- Auto start.
- Stop on overlap – waste sheet reduction.
- Sheet in/out control.
- Paper jam control.
- Zero/negative overlap.
- Automatic pressure and temperature detection.
- Removal of the last sheet.
- Sheet separation detection.
- Job settings saving.
- Internet connectivity for smart service.
Options
- Inline module for double side lamination.
- Second airshaft for quick film change.
- Inline embossing module.
- Inline pallet Stacker – pallet to pallet production.
- IR-preheating unit.
- Teflon coated polyurethan pressure roll.
- Integrated OTF module for effect foiling.
- Film roll slitter.
- Film roll perforator.
- Antistatic bar.
- Air-ionizer.
- Hot knife.
- Windows lamination kit.
Technical specifications
| Parameter | Value |
|---|---|
| Max. production speed | 40 m/min |
| Max sheet size | 800 x 1120 mm |
| Min. sheet size | 300 x 297 mm |
| Paper weight | 115-600 g/m² |
| Overlap accuracy | +- 0,75 mm |
| Machine dimensions (incl. jogging table B1) | 3980 x 1520 x 2100 mm |
| Min. sheet dimensions | 30 × 22 cm |
| Max. paper pile | 85 cm |
| Thickness of laminating film | 24-50 μm |
| Kind of laminating film | OPP, PET, Nylon |
| Time of laminating roll warm up | 4,5 min |
| Sheet overlap accuracy | ±1 mm |
| Air supply | Min. 6 bar |
| Consumption of compressed air | Max. 120 l/min |
| Max. pressing force | 22,5 kN |
| Max. linear nip pressure | 40 N/mm |
| Power supply | 7,2 kVA |
| Parametr | Hodnota |
|---|---|
| Min. rozměry archů | 20 × 20 cm |
| Max. výška stohu nakladače | 63,5 cm |
| Tloušťka laminovací fólie | 24-50 μm |
| Druh laminovací fólie | OPP, PET, Nylon |
| Doba zahřátí laminovacího válce | Cca. 3 min |
| Přesnost přesahu archů | ±1 mm |
| Vzduchová přípojka | Min. 6 bar |
| Spotřeba tlakového vzduchu | Max. 120 l/min |
| Max. přitlačovaná síla | 22,5 kN |
| Max. lineární tlak v nipu | 43 N/mm |
| Zdroj napájení | 7,2 kVA |
Custom-built solutions
Possibility of individual machine modification based on specific requirements
* Technical parameters of our products are subject to change without prior notice.
* Product pictures/videos may show additional options not included in the standard delivery.
